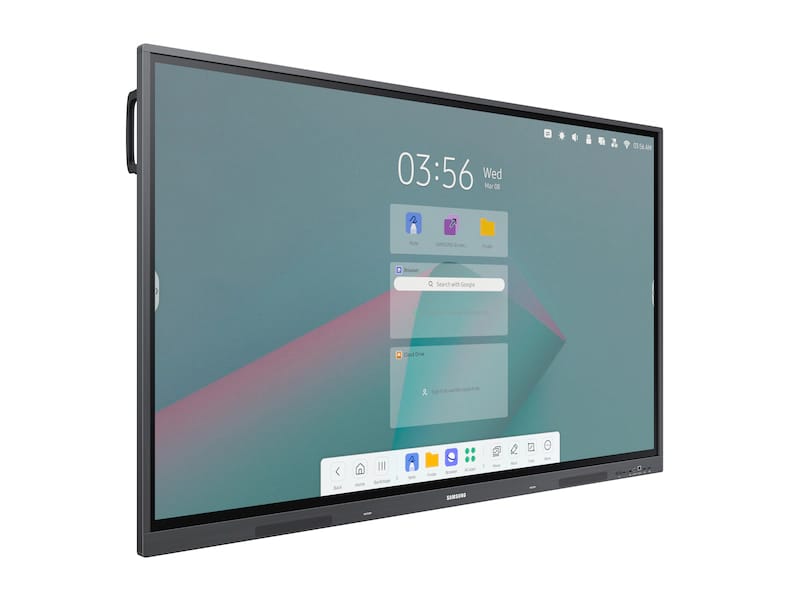

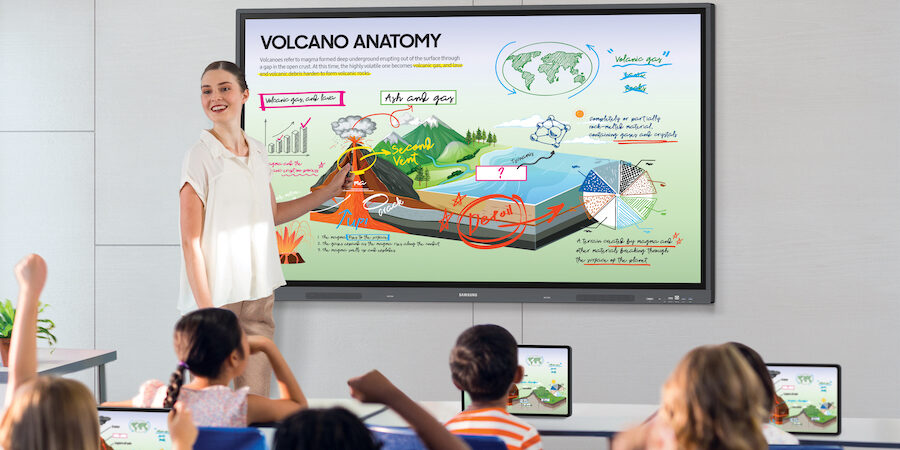

Introducing Samsung WAC Series: an interactive display that provides an engaging educational experience for the classroom of the future. As an Android OS-based product, it offers a familiar and intuitive user experience for teachers and students. Teachers can engage students and boost learning thanks to the display’s excellent compatibility with Android devices and intelligent apps that can be added to the custom home screen bar for convenience. Content can be shared back and forth between the large display and individual Android devices for an interactive lesson that ensures every student is included.
WAC series is an Android OS-based product with intuitive and convenient usability. It has excellent compatibility with Android-based devices, enabling more lively interactive classes with students.
Users can share up to nine screens at once in real time for maximum productivity. With this feature, content can be shared both ways between the large display and individual devices to engage every student.

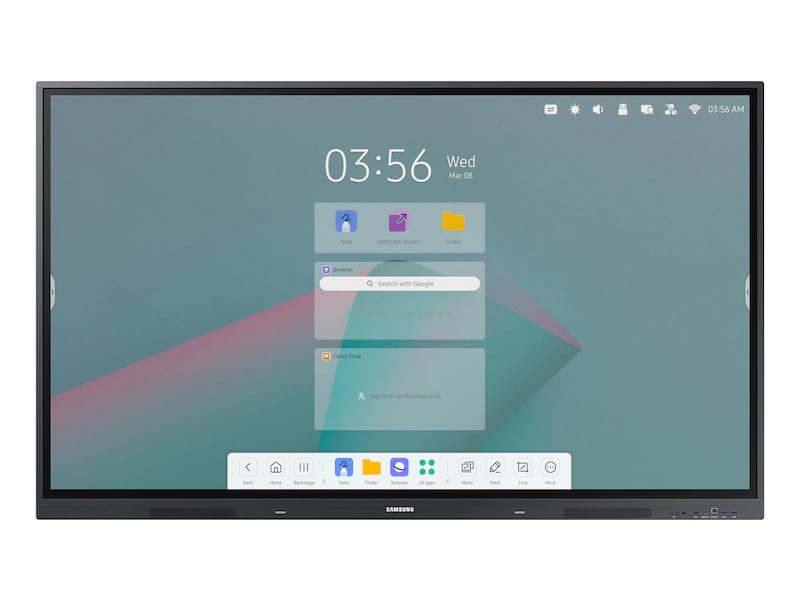

Apps and tools can be added to the home screen bar for easy access. Intelligent apps, such as timers and stopwatches, help teachers get creative with their lessons to enrich the learning environment.
A variety of screen mode options, including split screen mode and multi window mode, make it easy to display and read multiple windows at the same time on the WAC series.
Multiple users can write and draw on the whiteboard at the same time. WAC series enables multi-touch for up to 20 people for enhanced interactivity and productivity.
Thanks to the double-sided nib applied, users can effortlessly switch between the front pen and back highlighter without needing to change the settings or interrupt their flow.
Samsung Interactive Display | WAC | |||
---|---|---|---|---|
Panel | Diagonal Size | 65" | 75" | |
Type | Direct, 60Hz | Direct, 60Hz | ||
Resolution | 3,840 x 2,160 (Landscape) | 3,840 x 2,160 (Landscape) | ||
Brightness (Typ.) | 390cd/m2 (without glass) | 390cd/m2 (without glass) | ||
Contrast Ratio (Typ.) | 1,200:1 | 1,200:1 | ||
Viewing Angle (H/V) | 178:178 | 178:178 | ||
Response Time (G-to-G) | 8ms | 8ms | ||
Operation Hour | 16/7 | 16/7 | ||
Sound | Speaker Type | Built-in Speaker (12W x 2CH) | Built-in Speaker (12W x 2CH) | |

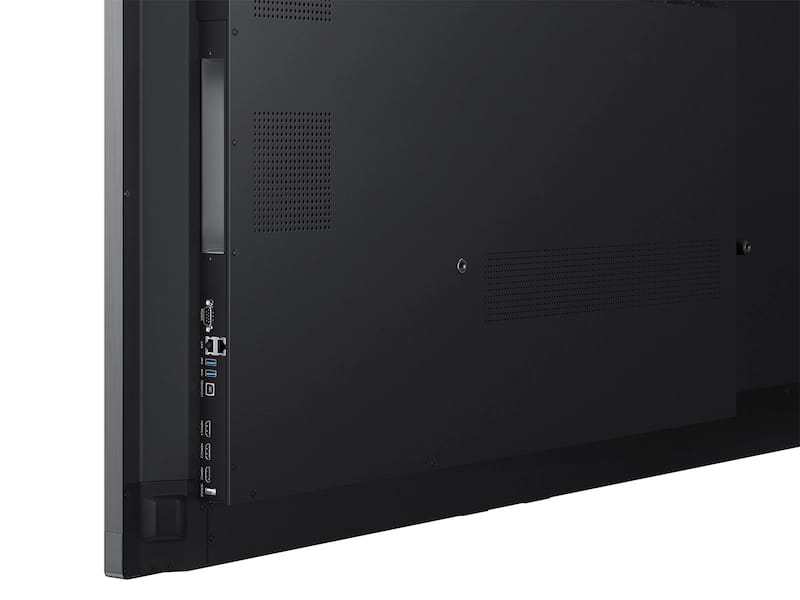

Connectivity | Input | RGB | 1 | 1 |

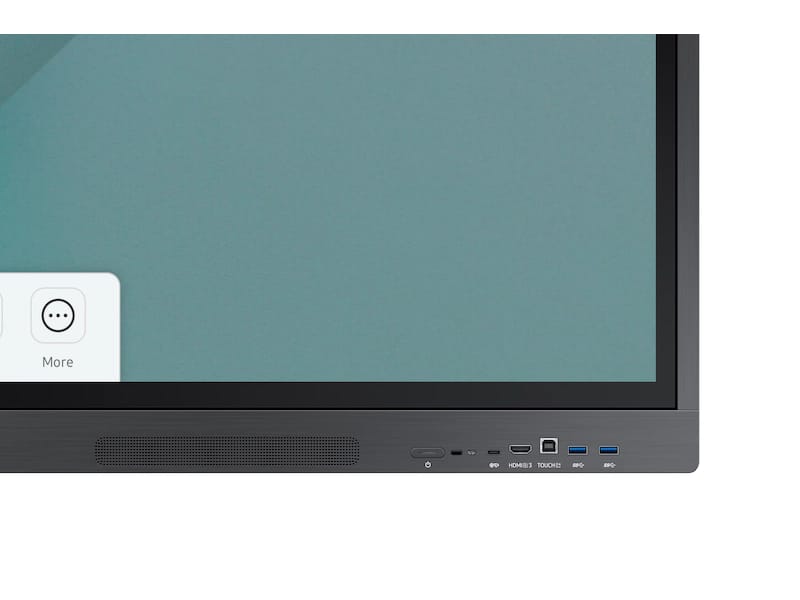

Video | HDMI 3 (Rear 2, Front 1), USB C (Front), OPS | HDMI 3 (Rear 2, Front 1), USB C (Front), OPS | ||
Audio | 1 (Stereo Mini Jack) | 1 (Stereo Mini Jack) | ||
USB | 5 (2.0 x 1, 3.0 x 4) | 5 (2.0 x 1, 3.0 x 4) | ||
Output | RGB | N/A | N/A | |
Video | HDMI Out (Rear) | HDMI Out (Rear) | ||
Audio | 1 (Stereo Mini Jack) | 1 (Stereo Mini Jack) | ||
Touch Out | Touch Out 2 (Front 1, Rear 1) | Touch Out 2 (Front 1, Rear 1) | ||
Internal | Sensor | Eco Sensor | Eco Sensor | |
Externa | Control | RS232C In/Out, RJ45 In/Out | RS232C In/Out, RJ45 In/Out | |
BT/WiFi | Yes (Keyboard/Mouse) | Yes (Keyboard/Mouse) | ||
Touch | Type | IR | IR | |
# of Drawing | 20 points touch | 20 points touch | ||
Touch Pen Type | Passive Pen | Passive Pen | ||
Object Recognition Range | 5mm/10mm/15mm | 5mm/10mm/15mm | ||
Touch Response Time | ≤10ms | ≤10ms | ||
Drawing Speed (Touch latency) | ≤45ms | ≤45ms | ||
Haze | 25% | 25% | ||
Thickness | 3.2T | 3.2T | ||
Hardness | Tempered Glass | Tempered Glass | ||
Power | Type | Internal | Internal | |
Power Supply | AC100-240V 50/60Hz | AC100-240V 50/60Hz | ||
Power Consumption | Max [W/h] | 385W | 385W | |
Typical [W/h] | 200W | 200W | ||
Rating [W/h] | 350W | 400W | ||
Stand-by [W/h] | 0.5 | 0.5 | ||
BTU [W/h] | 1,314 | 1,314 | ||
Mechanical | Dimension (mm / in.) | Set | 1,488 x 897 x 88mm / 58.5 x 35.3 x 3.5 in. | 1,709 x 1,020 x 88mm / 67.2 x 40.1 x 3.5 in. |
Package | 1,628 x 1,005 x 208mm / 64 x 39.5 x 8.1 in. | 1,863 x 1,140 x 225mm / 73.3 x 45 x 8.9 in. | ||
Weight (kg / lbs.) | Set | 34.8kg / 76.7 lbs. | 46.4kg / 102.3 lbs. | |
Package | 48.7kg / 107.3 lbs. | 62.9kg / 138.7 lbs. | ||
Color | Space Gray | Space Gray | ||
VESA Mount | 600 × 400 | 800 × 400 | ||
Protection Glass | Yes | Yes | ||
Stand Type | Wall Mount | Wall Mount | ||
Media Player Option Type | OPS Slot support | OPS Slot support | ||
Rotation | Landscape only | Landscape only | ||
Power Cable Length | 3m | 3m | ||
Accessory | Power Cord, Remote Controller, HDMI Cable, Touch Pen (2ea, Black), USB Cable, Warranty/QSG | Power Cord, Remote Controller, HDMI Cable, Touch Pen (2ea, Black), USB Cable, Warranty/QSG | ||
Operation | Operating Temperature | 0℃~40℃ | 0℃~40℃ | |
Humidity | 10~80% | 10~80% | ||
Feature | Key | Android App Launcher | Android App Launcher | |
Orientation | Landscape | Landscape | ||
H/W | Touch Overlay (IR), Front Connectivity, OPS I/F Support (w/OPS Box), Eco Sensor, WiFi/BT Module Inbox | Touch Overlay (IR), Front Connectivity, OPS I/F Support (w/OPS Box), Eco Sensor, WiFi/BT Module Inbox | ||
S/W | First Screen | Home UI (Multi Windows supported) | Home UI (Multi Windows supported) | |
Apps | Note app, Screenshare, Finder, Browser, etc. | Note app, Screenshare, Finder, Browser, etc. | ||
WebRTC | Yes | Yes | ||
Screen Share | Yes | Yes | ||
Internal Player (Embedded H/W) | Processor | A55 x 4 | A55 x 4 | |
RAM | 4GB | 4GB | ||
Storage | 32GB | 32GB | ||
Operating System | Android 11 (AOSP) | Android 11 (AOSP) | ||
Security | 802.1 x (WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP | 802.1 x (WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP | ||
Accessories | Included | Power Cord, Remote Controller, HDMI Cable, Touch Pen (2ea, Black), USB Cable, Warranty/QSG | Power Cord, Remote Controller, HDMI Cable, Touch Pen (2ea, Black), USB Cable, Warranty/QSG | |
Optional | Stand | N / A (3rd party company stand/mount can be supported through VESA) | N / A (3rd party company stand/mount can be supported through VESA) | |
Mount |
